The Voyager Module Bracket Grants Third-Party Devices Compatibility with the Voyager System

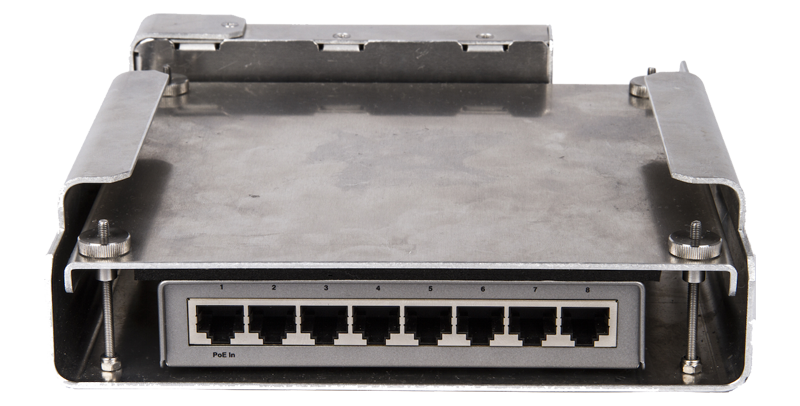

The Voyager Module Bracket (VoyagerMB) allows third party devices, such as the Cisco SG200-08 Gigabit Smart Switch, to be installed in a Voyager 8 chassis and become compatible with the Voyager system design.
VoyagerMB provides secure mounting in the Voyager 8 chassis. Power is provided from the Voyager 8 chassis via the standard Voyager rear power connector transforming the third party network device into the standard Voyager form factor.
Key Features:
- Voyager module form factor
- Securely mounts in a Voyager 8 chassis
- 12 VDC power supplied via the Voyager 8 chassis
Specifications
Physical Specifications
- 7.4” W x 7.9” L x 2” H (188 x 201 x 52mm)
- 1.5 lb / 0.67 kg
Electrical Specifications
- 10-18 VDC Input
- 12 VDC Output
- Power consumption varies with module installed
Construction
- Aluminum chassis
- Thumbscrews securely clamp third-party module
