x86 compute platform supporting virtualization

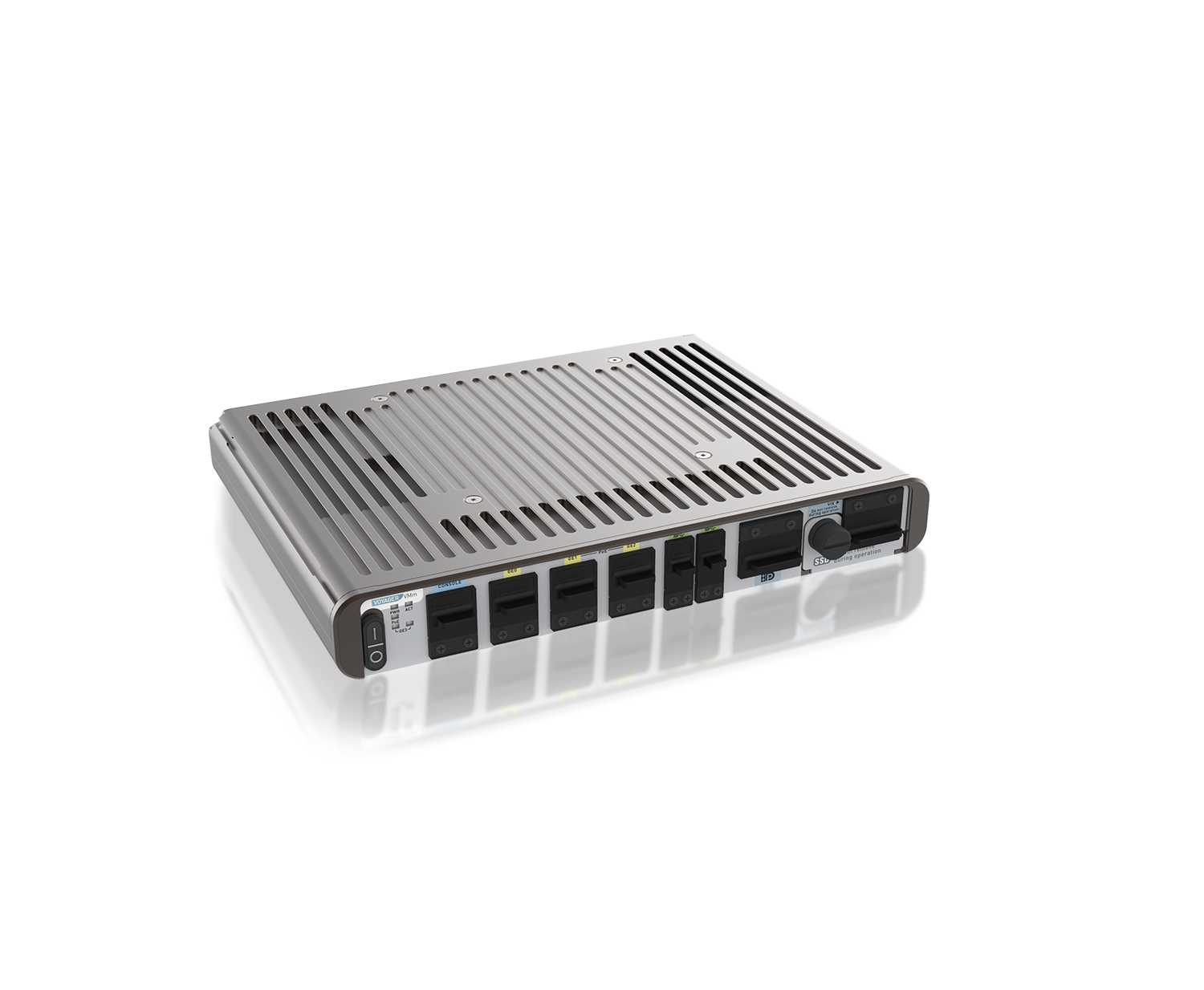

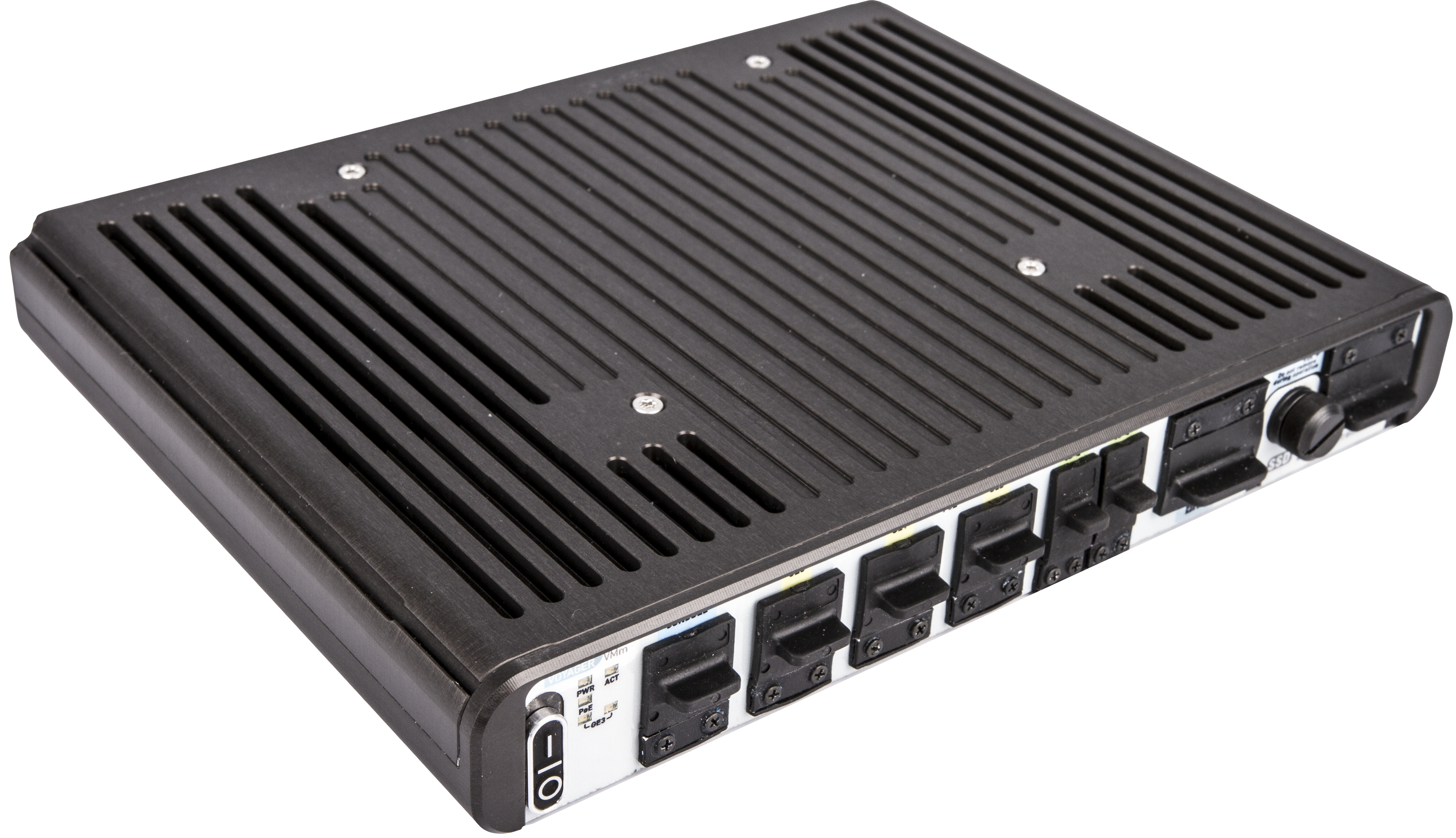

VoyagerVMm offers an Intel 5th Gen i5 compute platform in a fanless, half-size module format. With support for 32GB RAM and dual-core performance, VoyagerVMm supports VMware virtualization for Guest Operating support such as Riverbed WAN Acceleration, Cisco ASAv and Cisco CUCM. It can also be paired with VoyagerLMRm to provide a Twisted Pair WAVE implementation including four E&M ports, to integrate your radios with an IP network in a single Voyager module.

Key Features:

  • Half the height of standard VoyagerVM at 7.4″ W x 5.7″ D x 1″ H
  • Low power consumption
  • Lightweight extruded aluminum construction
  • Data & power backplane to simplify cabling
  • Cisco-based technology
  • Intel Processor (i3 or i5 options)
  • Supports Virtualization
  • Platform for Riverbed WAN Acceleration, Twisted Pair WAVE, Cisco IPICS, Cisco 5921 Software Router

Specifications

Overview

  • Intel Processor
  • Supports virtualization
  • Platform for Riverbed WAN Acceleration, Twisted Pair WAVE, Cisco IPICS,
    Cisco 5921 Software Router

Physical

  • 7.4” W x 5.7” L x 1.0” H (188 mm x 145.2 mm x 26mm)
  • 2.2 lb / 1.0 kg

Electrical

  • 10-18 VDC input
  • 20 W power consumption

Port

  •  2 x Console, 2 x Gigabit Ethernet, 2 x USB 3.0, 1 x DisplayPort++, 1 x VIK, 1 x SSD

Construction

  • Lightweight extruded aluminum
  • Sealed unit with dust caps for extra protection

Operating Temperature Range

  • -30oC to +50oC

CPU Options

  • 5th Gen Intel® Dual-Core™ i5-5350U (1.8GHz); 32 GB DDR3 RAM
  • 5th Gen Intel® Dual-Core™ i3-5010U (1.8GHz); 8 GB DDR3 RAM
  • Intel® vPro™ / IPMI; Intel Virtualization Technology; IPMI management

Storage Options

  • Samsung 850 EVO 250 GB mSATA SSD
  • Samsung 1 TB mSATA SSD option also available

Compliance

  • MIL-STD-810G, IEC 60529, MIL-STD-461E, FCC Part 15B
