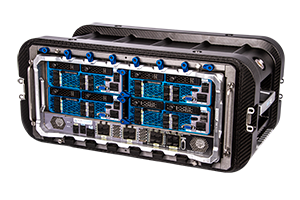

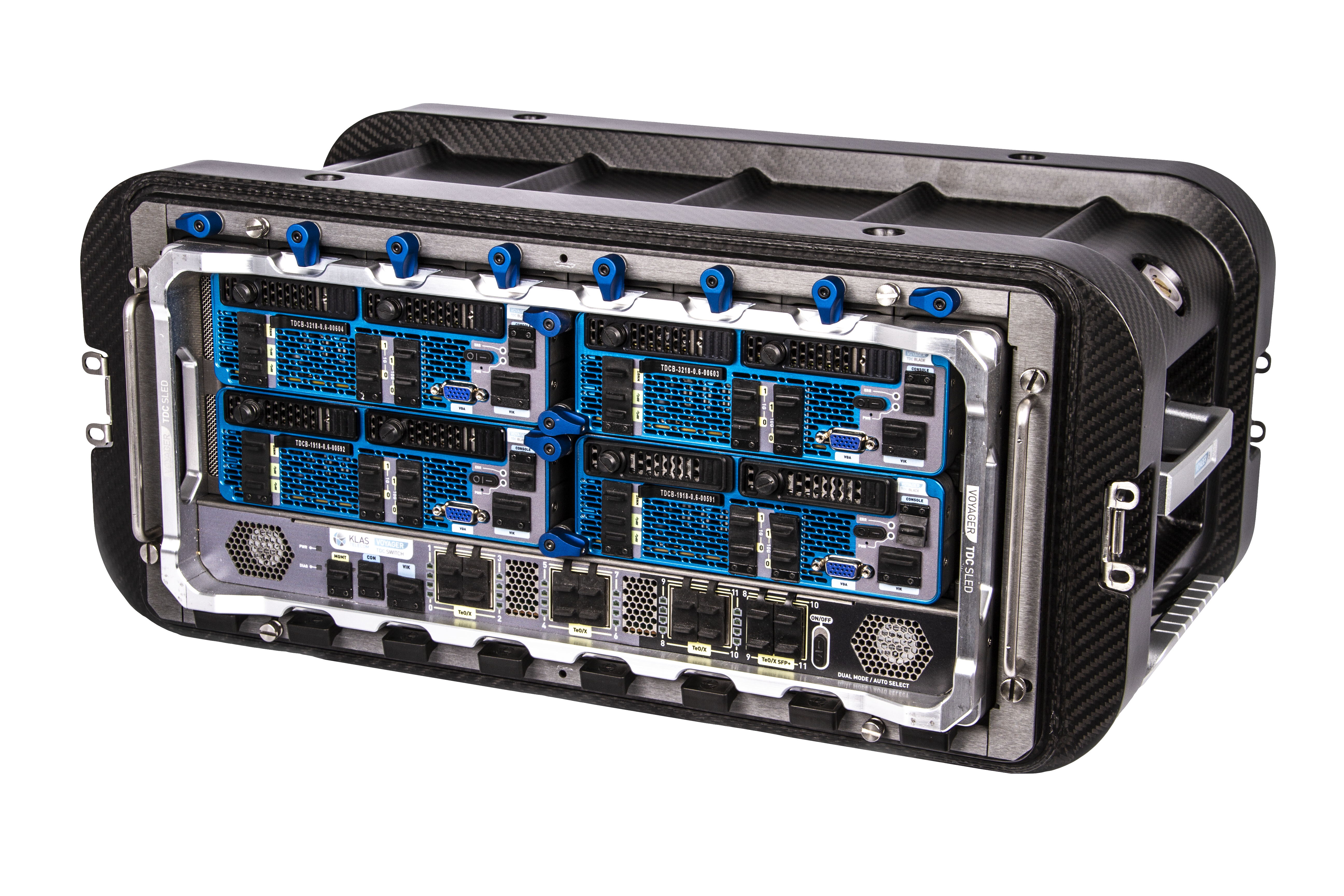

Make your headquarters more mobile with Voyager TDC

Move your data center from 19″ racks to airline carry-on size

Move your data center from 19″ racks to airline carry-on size
Deploying data-center sized servers and storage to remote areas has always been challenging logistically from the perspective of size, weight and power.
Since the launch of Voyager TDC, it’s possible to deploy data-center grade compute and storage using commercial aircraft.
VMware vSAN and Nutanix Certified
Make your headquarters more mobile with Voyager TDC
■ 7.4” W x 6.3” L x 2” H (188 mm x 160 mm x 52 mm)
■ 2.9 lb / 1.3 kg
■ 9 – 36 VDC Input for operation
■ Power consumption:
■ 12 W using 10 G SFP+ DAC
■ 32.5 W with 8 x 10 GBASE-T and QSFP DAC fitted
■ Operating: -32°C to 50°C
■ Storage: -40°C to 85°C
■ Aluminum chassis with external fan for cooling
Layer 2 features:
■ 121 Gbps backplane for wirespeed switching on all ports simultaneously.
■ IEEE 802.1D and 802.1Q-compliant
■ Supports upto 32768 MAC Address in the Forwarding Database (FDB)
■ 4K active VLANs
■ IEEE 802.1w (RSTP) and 802.1s (MSTP)
■ Link Aggregation (802.1AX/802.3ad) static and dynamic with LACP
■ Fast link/LAG failover
■ VLAN trunking
■ Port Mirroring
Layer 3 features:
■ IPv4 Inter-VLAN routing
■ IPV4 Static routing
■ 8 x 10 Gbps SFP+ ports
■ 1 x 40 Gbps QSFP+ port with breakout cable for four 10 Gbps SFP+ ports
■ 1 x 1 Gbps Management port
■ 1 x Voyager Ignition Key (VIK) port
■ 1 x RJ-45 Serial Console port
■ SNMP
■ Ingress and egress port MIB counters
■ sFlow (RFC 3176)
■ IPFix
■ Ansible playbooks
Designed to meet:
■ MIl-STD-810
■ MIL-STD-461
■ FCC CFR 47 Part 15 Subpart B Class A
■ RoHS Directive
