Physical Specifications

• 7.4” W x 6.3” L x 2” H (188 x 160 x 52mm)
• 3.5 lb / 1.6 kg (with no SSDs)

Electrical Specifications

• 9-36 VDC Input
• 55 W power consumption
•  Power consumption:
  • 4-core (D-1519): 45 W
  • 8-core (D-1539): 55 W
  • 12-core (D-1559): 65 W
  • 16-core (D-1577): 65 W

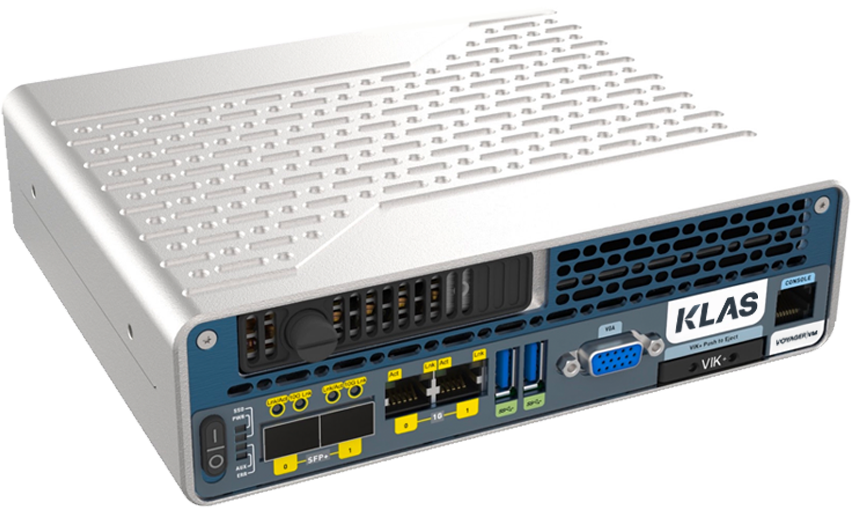

Construction

• Aluminum chassis with integrated active cooling for increased temperature ranges

Operating Temperature Range

• -32 to 50 °C
• 0°C to 50°C for 16-core option

Storage Temperature Range

• -40 to 85 °C
• -20°C to 80°C for 16-core option

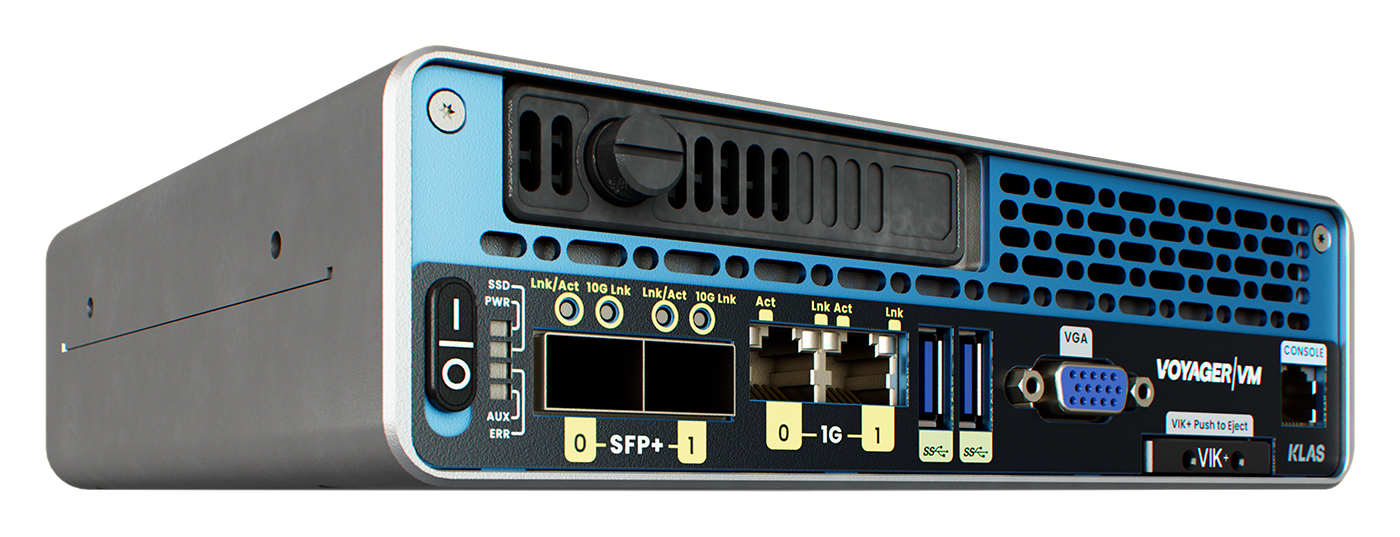

Ports

• 2 x 10 Gb SFP+ ports
• 2 x 1 Gb Ethernet ports
• 2 x SATA interfaces
• 2 x USB 3.0 interfaces
• VGA port
• RJ-45 serial console port with hypervisor access
• Removable NVMe Voyager Ignition Key (VIK+) optional removable storage for hypervisor and/or configuration data

CPU Options

• Intel® Pentium® Processor D-1519 4-Core with 16 GB RAM (order time option of 96 GB RAM)
• Intel® Xeon® Processor D-1539 8-Core with 48 GB RAM (order time option of 96 GB RAM)
• Intel® Xeon® Processor D-1559 12-Core with 48 GB RAM (order time option of 96 GB RAM)
• Intel® Xeon® Processor D-1577 16-Core with 48 GB RAM (order time option of 96 GB RAM)

Removable Storage

• Removable SATA Dual SSDs (SSDs quoted separately)
• Removable NVMe Voyager Ignition Key (VIK+)

Software Support

• KlasOS Keel KVM-based hypervisor
• VMware ESXi 6.x
• Cisco NFVIS with:
  • Cisco KVM-based Hypervisor
  • Cisco CSR 1000v
  • Cisco ASAv
  • Riverbed Steelhead
  • Palo Alto

Management

• BIOS & Hypervisor CLI over console
• IPMI

Compliance

Designed to meet:

• MIL-STD-810G
• MIL-STD-461F
• FCC Part 15 B
• CE
• RoHS, REACH
