Cisco access switch with 1Gbps client connectivity and 10Gbps uplinks

Klas VoyagerSW12GG

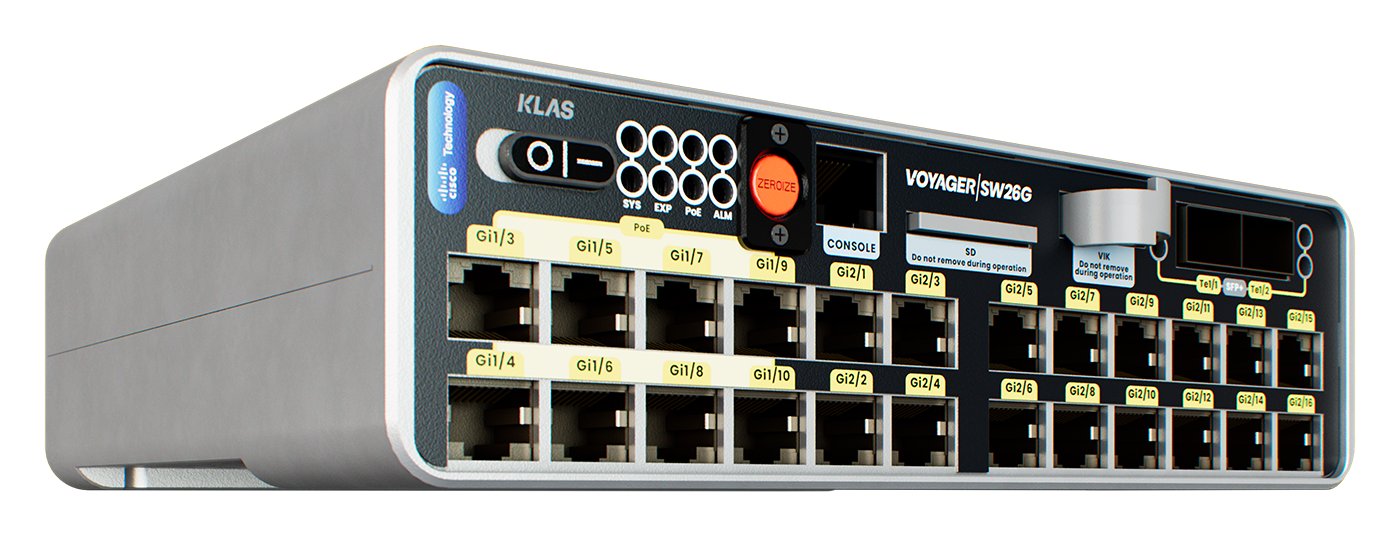

Take advantage of your tactical compute capability by providing high-speed access from client to server using VoyagerSW26G.

VoyagerSW26G, based on Cisco ESS 3300 connects PCs and VoIP phones to your network at 1Gbps providing a ten-fold increase in performance.

VoyagerSW26G leverages the ruggedized, embeddable Cisco ESS 3300 to provide a Gigabit Ethernet switching solution in a Voyager module form factor.



Key Features:

  • Small form factor Cisco IOS switch in Voyager module format
  • 24 x 1 Gigabit Ethernet switch ports, with 8 ports (Gi1/3 to Gi1/10) providing PoE+
  • 2 x 10 Gigabit SFP+ uplink ports
  • Layer 2 switching features including: IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, RSTP
  • Cable-free internal construction for maximum reliability
  • Low power consumption
  • Zeroize function to erase any sensitive information on the device
  • Voyager Ignition Key (VIK) support
  • SD card support
Download Brochure
View our full Voyager range
Request a Call

Specifications

Physical Specifications

  • 7.4” W x 6.3” L x 2” H (188 mm x 160 mm x 52 mm)

  • 3.6 lb / 1.63 kg

Electrical Specifications

  • 10 – 18 VDC Input for operation
  • 44 – 57 VDC input for PoE+ must be provided by the Voyager chassis used, where:
    • Voyager 1: provides 10 W of PoE power (48 VDC), sufficient to power one Class 2 PoE phone at 6.25 W each
    • Voyager 2: provides 15 W of PoE power (48 VDC), sufficient to power two Class 2 PoE phones at 6.25 W each
    • Voyager 8: provides 100 W of PoE power (48 VDC), sufficient to power sixteen Class 2 PoE phones at 6.25 W each
  • 24 W power consumption without PoE+
  • Each PoE+ port is 802.3af and 802.3at capable and are managed via the CLI. Power is delivered in Mode A wiring configuration
  • The dual SFP+ ports support 2.5 W modules and are hot swappable
  • On-board battery backed RTC is provided when system power is down

Construction

  • Aluminum chassis with integrated cooling for fanless operation

Operating Temperature range

  • -32 to 60C w/ conduction cooling

  • -32 to 70C w/ forced air cooling

Storage Temperature range

  • -40 to 70C

Compliance

Designed to:

  • MIL-STD-810G
  • MIL-STD-461 (RE102, CE102)
  • FCC CFR 47 Part 15 Subpart B Class A
  • IEC 61000-4-2 & IEC 61000-4-5
  • RoHS Directive

Ports

  • 24 x 1 Gb Ethernet ports
  • 2 x 10 Gb SFP+ uplink ports
  • 1 x Console Management port
  • 1 x Voyager Ignition Key (VIK) port
  • 1 x Zeroize button
  • 1 x SD card

Switch Features

Layer 2 features:

  • MAC Addresses = 8K
  • VLAN IDs = 256
  • IGMP Groups = 1k
  • Switched Virtual Interfaces (SVIs) = 8
  • No. of STP instances = 256
  • ACL (PACL, VACL, RACL) = 3K rules total ACL’s & QoS

Layer 3 features:

  • IPv4 unicast routes (L2 connected & indirectly connected) = 7680
  • IPv6 unicast routes (IPv6 only) = 1024
  • QoS access control entries (ACE’s) = 3K rule total ACL’s & QoS
  • Active Class-maps (ingress) = 26
  • Active Class-maps (egress) = 8
  • Wired queues/port = 8 queues
  • Buffer/ASIC = 12 Mb/1.5 MB

Removable storage

  • Voyager Ignition Key (VIK) support
    • eToken-like functionality which supports configuration from VIK
    • Easy reconfiguration of device for different enclaves by replacing VI
  • SD Card
