240TB high-speed secure storage to capture your video streams

VoyagerNAS 3.0 combines the powerful compute capabilities of VoyagerVM 3.0 with a removable eight bay SATA/SAS cassette.

Ingest data at 10Gbps and use the in-built compute to process it, all in a single box.



RAID-based NAS device in Voyager module form factor

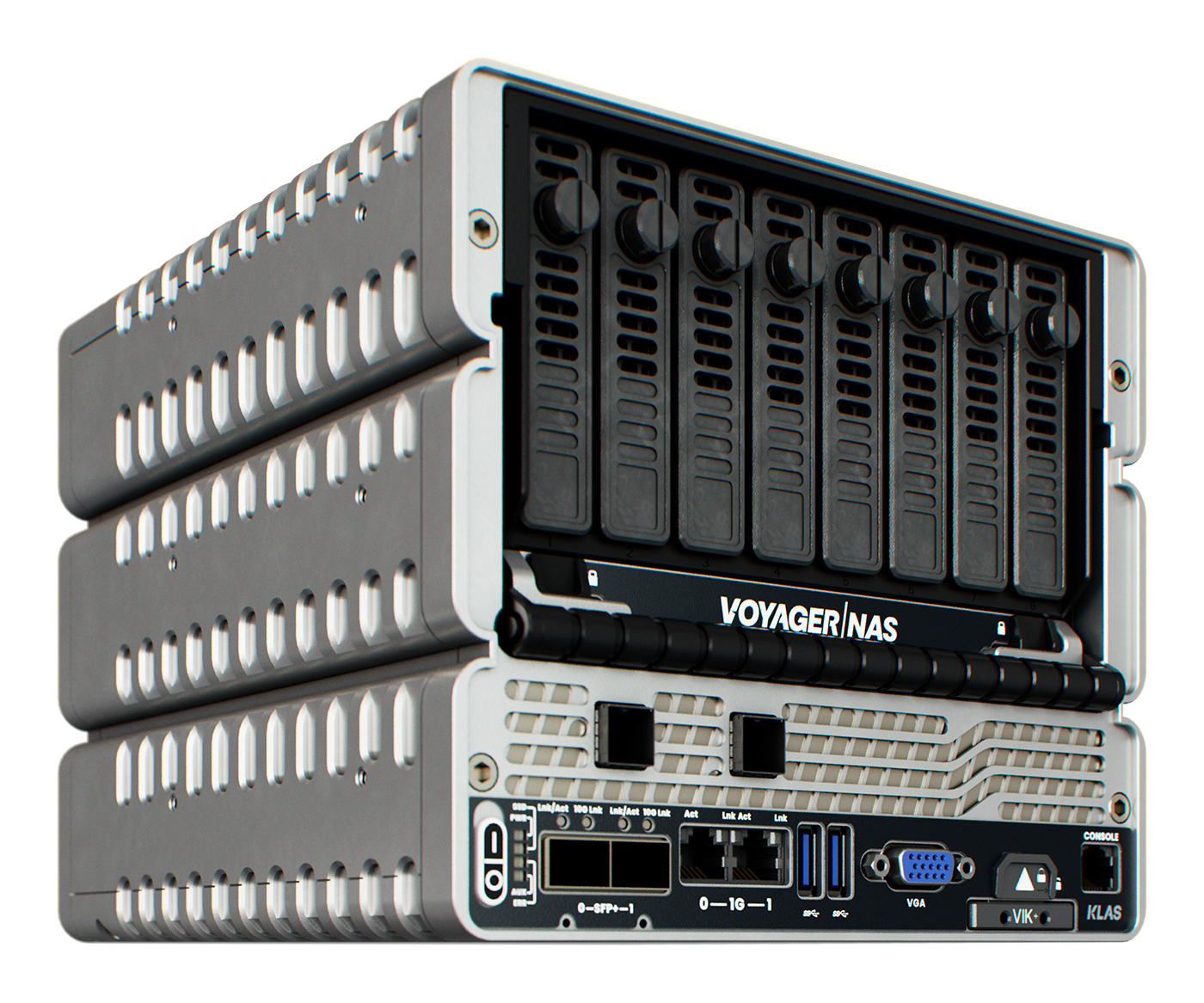

Figure 1: VoyagerNAS 3.0 Front View

Key Features:

  •  Choice of processors:
    • Intel® Xeon® Processor D-1539 Broadwell-DE 8-Core Processor with 48 GB RAM
    • Intel® AtomTM Denverton 3708 8-Core Processor with 48 GB RAM
  • Intel® RSP3MD088F RAID Card connected via PCIe x 8 and supporting RAID Levels 0, 1, 10, 5, 50, 6, 60.
  • Removable 8-drive bay with:
    • SATA / SAS support
    • 8, 16, 32 TB SSDs available
    • Support for an additional eight SSDs via two 4 x SAS connectors
  • Removable NVMe Voyager Ignition Key (VIK+)
  • Self-encrypting drive support
  • Supercap based battery backed cache
  • Supported across three Voyager module slots in either Voyager 8 or Voyager 8+ chassis

Specifications

Physical Specifications

■ 7.4” x 6.4” x 7.9” (188 x 162 x 201mm)
■ 10.4 Ib (4.7kg)

Electrical Specifications

■ 12 VDC Input
■ Power consumption:
■ 80 W Intel® Xeon® D-1539, no SSDs
■ 130 W including 8 x SATA SSDs
■ 200 W including 8 x SAS SSDs

Operating Temperature

■ 0°C to 50°C

Construction

■ Aluminum chassis

Processor Options

■ Intel® Xeon® Processor D-1539 Broadwell-DE 8-Core Processor with 48 GB RAM
■ Intel® AtomTM Denverton 3708 8-Core Processor with 48 GB RAM

Ports

■ 8 x SATA/SAS 2.5” slots in removable 8-drive caddy
■ Two 4x SAS connectors to add additional 8 SSDs
■ Removable NVMe Voyager Ignition Key (VIK+)
■ 2 x 10Gb SFP+ Ports
■ 2 x 1Gb Ethernet Ports
■ 1 x VGA Port
■ 2 x USB3.0 Ports
■ 1 x RJ-45 serial console interface

Compliance

Designed to:
■ MIl-STD-810G
■ MIL-STD-461 (RE102, CE102)
■ FCC CFR 47 Part 15 Subpart B Class A
■ RoHS Directive
