Move your data center from 19″ racks to airline carry-on size

Deploying data-center sized servers and storage to remote areas has always been challenging logistically from the perspective of size, weight and power.

Since the launch of Voyager TDC, it’s possible to deploy data-center grade compute and storage using commercial aircraft

VMware vSAN and Nutanix Certified

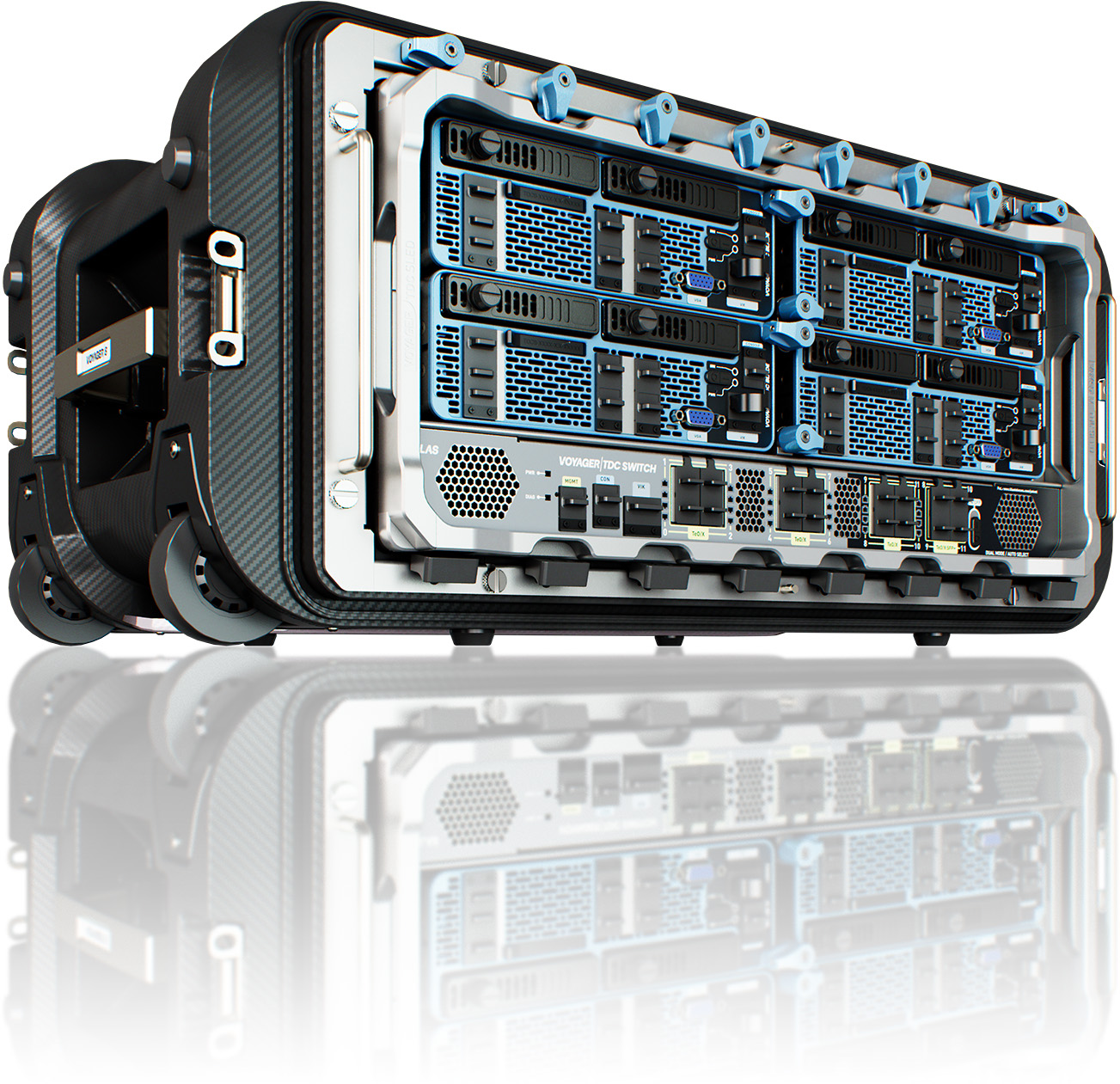

Make your headquarters more mobile with Voyager TDC

Key Features:

  • Voyager 8 case and chassis with built-in UPS and AC/DC charge options
  • 4x TDC Blades each with
    • Xeon D CPU with 128GB RAM
    • NVMe storage for caching
    • 4x 2.5″ SATA SSDs
    • VIK for easy configuration changes
  • Voyager TDC Switch with
    • 12x 10Gbits/s port with copper and fiber options
    • 121 Gbps backplane for line-speed processing on all ports simultaneously
    • 40 Gbps trunk for interconnection with 3rd party switches
    • Inter-VLAN routing in hardware at line rate
    • 1x 40 Gbps QSFP+ port for high-speed uplink. Can also operate as 4 x 10 Gbps SFP+ ports using included breakout cable
    • Port mirroring, IPFix
    • Ansible playbook management supported
    • Voyager Ignition Key (VIK) for configuration and storage
  • VMWare vSAN certified
  • Nutanix certified with both AOS and VMware ESXi

Specifications

Physical Specifications

■ 7.4” W x 6.3” L x 2” H (188 mm x 160 mm x 52 mm)
■ 2.9 lb / 1.3 kg

Electrical Specifications

■ 9 – 36 VDC Input for operation
■ Power consumption:
■ 12 W using 10 G SFP+ DAC
■ 32.5 W with 8 x 10 GBASE-T and QSFP DAC fitted

Temperature

■ Operating: -32°C to 50°C
■ Storage: -40°C to 85°C

Construction

■ Aluminum chassis with external fan for cooling

Switching

Layer 2 features:
■ 121 Gbps backplane for wirespeed switching on all ports simultaneously.
■ IEEE 802.1D and 802.1Q-compliant
■ Supports upto 32768 MAC Address in the Forwarding Database (FDB)
■ 4K active VLANs
■ IEEE 802.1w (RSTP) and 802.1s (MSTP)
■ Link Aggregation (802.1AX/802.3ad) static and dynamic with LACP
■ Fast link/LAG failover
■ VLAN trunking
■ Port Mirroring

Layer 3 features:
■ IPv4 Inter-VLAN routing
■ IPV4 Static routing

Ports

■ 8 x 10 Gbps SFP+ ports
■ 1 x 40 Gbps QSFP+ port with breakout cable for four 10 Gbps SFP+ ports
■ 1 x 1 Gbps Management port
■ 1 x Voyager Ignition Key (VIK) port
■ 1 x RJ-45 Serial Console port

Management

■ SNMP
■ Ingress and egress port MIB counters
■ sFlow (RFC 3176)
■ IPFix
■ Ansible playbooks

Compliance

Designed to meet:
■ MIl-STD-810
■ MIL-STD-461
■ FCC CFR 47 Part 15 Subpart B Class A
■ RoHS Directive
