Low SWaP, Layer 3 Ethernet switch + PoE + removable configuration storage
Listed on the NIAP CSfC Product Compliant List

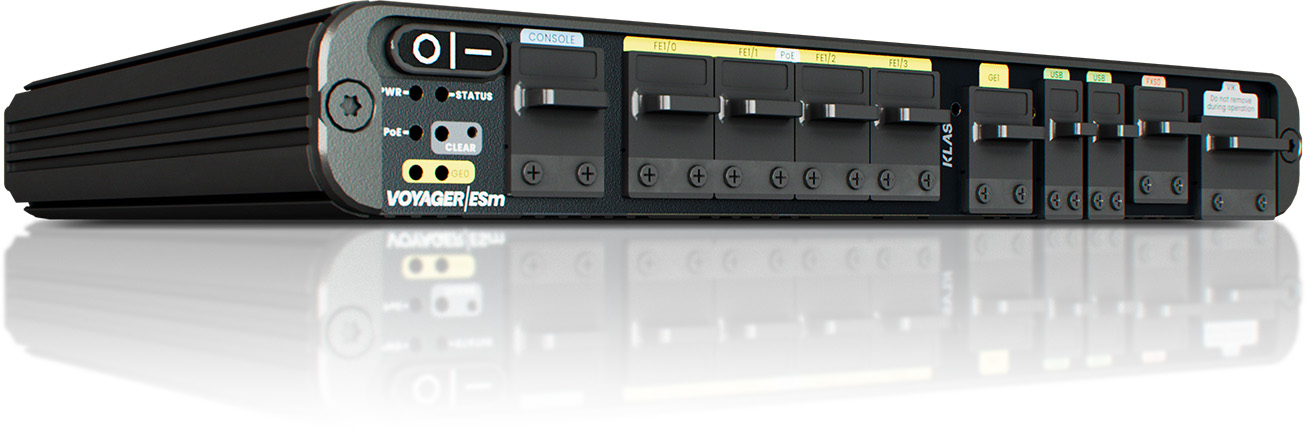

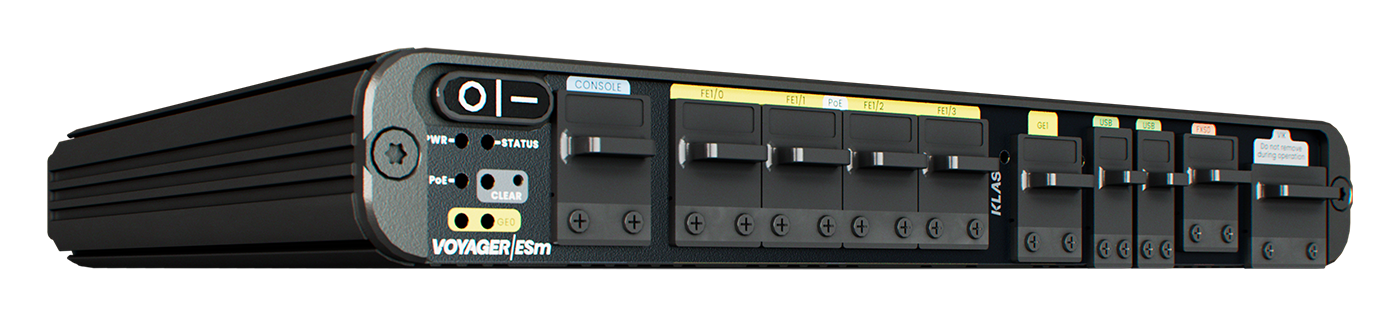

The Voyager Embedded Switch m-Series (VoyagerESm) contains the same Layer 3 switch designed by Klas Telecom but has fewer ports for reduced SWaP operations. It contains 4 Fast Ethernet ports, all of which are PoE enabled, a Gigabit Ethernet switch port, 2 USB 2.0 ports, console management port and a removable configuration storage for increased security, persona portability and simplified sparing.

The VoyagerESm supports critical Cisco VoIP switching features such as VLAN trunking and Cisco Discovery Protocol (CDP).

Ruggedization is a key feature of the VoyagerESm with a lightweight, fanless design and an extruded aluminum enclosure with dust caps for all ports.

A CSfC Solution

The VoyagerESm is listed on the NIAP Product Compliant List (PCL) making it a viable CSfC solution for government customers.

Klas’s VoyagerESm is a core component of the Voyager Executive

Communications Kit (VoyagerECK), a discreet and portable VoSIP and multi-enclave data communications package that connects executives on the move with the secure resources they need. The VoyagerESm passing common criteria allows the VoyagerECK to be used as a CSfC solution. Existing users, please contact [email protected] to learn how you can upgrade your existing kit for secure wireless encryption.

Key Features:

Key Features

  • Half the height of standard Voyager modules at 7.4” wide x 5.7” deep x 1” high
  • Low power consumption
  • Cisco-based technology
  • Lightweight extruded aluminum construction
  • Data & power backplane to simplify cabling
  • Embedded Klas Layer 2 switch with additional Layer 3 functionality
  • Port security, 802.1x, STP, IGMP, SNMP
  • Voyager Ignition Key (VIK) functionality
Download Brochure
View our full Voyager range
Request a Call

Specifications

Layer 3 Switch

  • Auto-sensing 10/100 BaseT
  • Cisco Discovery Protocol VLAN support
  • IEEE 802.1Q port VLAN
  • Layer 3 features including G.729 transcoding, NHRP, Multipoint GRE/DMVPN, OSPF
  • Multiple Spanning Tree Protocol (IEEE 802.1Q)
  • Voice & Data VLAN
  • IEEE 802.1x MAC authentication

Physical

  • 7.4” W x 5.7” L x 1.0” H (188 mm x 145.2 mm x 26mm)
  • 1.8 Ib / 0.8 kg

Electrical

  • 10-18 VDC input for operation
  • 48 VDC input for PoE; 15 W power consumption

Ports

  • 1 x RJ-45 Console port
  • 4 x 10/100 BaseT Fast Ethernet with PoE
  • 1 x Gigabit Ethernet port
  • 2 x USB 2.0 ports
  • 1 x FXS port
  • 1 x VIK storage port

Construction

  • Integrated aluminum chassis with cooling fins for fanless operation
  • Sealed unit with dust caps for extra protection

Operating Temperature Range

  • -25oC to 60oC with conduction cooling
  • -25oC to 70oC with forced air cooling

Storage Temperature Range

  • -30oC to 85oC

Removable Storage

  • Voyager Ignition Key (VIK)

KRTv4 Switch

  • Auto-sensing 10/100 BaseT
  • Cisco Discovery Protocol VLAN
  • IEEE 802.1Q port VLAN
  • Multiple Spanning Tree Protocol
  • Voice & Data VLAN
  • IEEE 802.1x MAC authentication
  • Layer 3 features include G.729 transcoding, NHRP, Multipoint GRE/DMVPN, OSPF

Management

  • KlasOS 5 (a Cisco-like CLI with similar look and feel)
  • SNMP v1
  • SNMP v2
  • SNMP v3

Compliance

  • MIL-STD 810G, MIL-STD-461E
  • IEC 60529
  • FCC Part 15B
