Use your vehicle as a mobile command post with the Voyager 4 Slim

Voyager 4 Slim is a lightweight chassis with space for up to four Voyager modules with or without a Voyager 1 battery pack attached.

The Voyager 4 has multiple point points to enable vehicle or rackmount installations.

The installed modules are powered via the chassis backplane which is supplied directly by the input power supply with a separate PoE power input also provided.

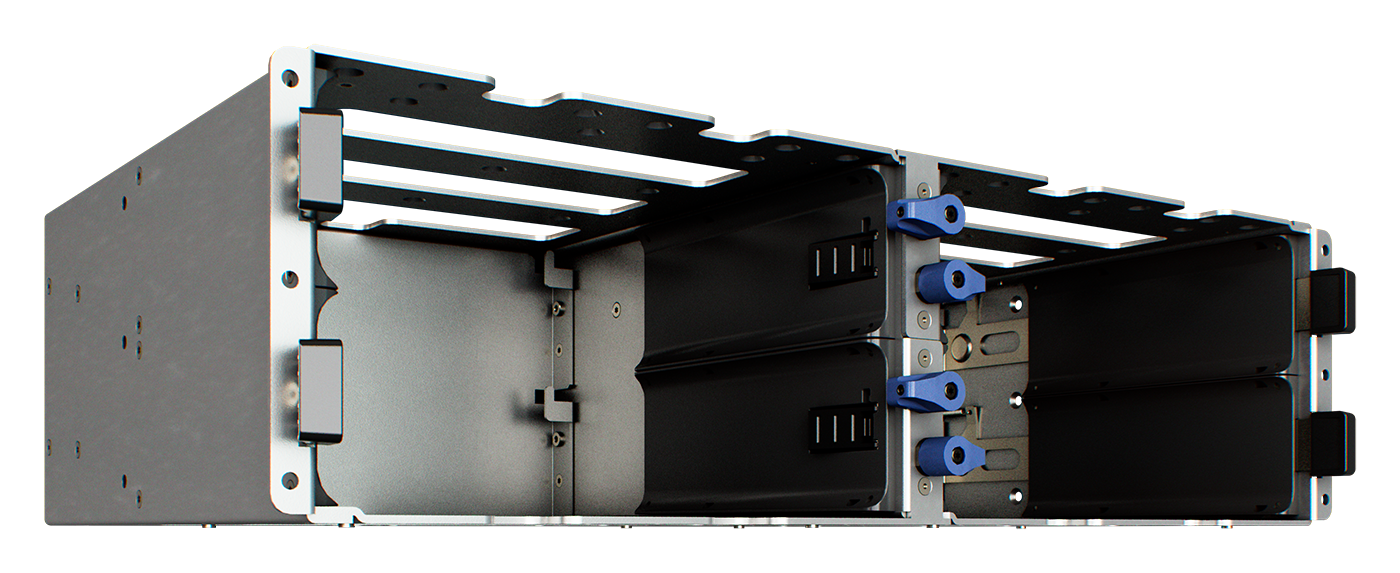

Figure 1: Voyager 4 Slim Front View
Figure 2: Voyager 4 Slim Power Input Connectors

Key Features:

  • Support for up to four Voyager modules including Voyager 1 battery packs if attached.
  • Multiple mounting options with mounting holes on the front, rear and sides of the chassis.
  • Lightweight aluminum construction.
  • DC input connector for connecting a 12 VDC power source. Ensure that the input power matches the power rating of the Voyager modules installed in the chassis.
  • PoE power input connector for connecting a separate 48 VDC PoE power source.

Specifications

Physical Specifications

  • 19” W x 9.1” D x 5” H (258mm W x 232.5mm D x 232.5mm H)
  • 5.5 lb (2.5 kg)

Electrical Specifications

  • 12V, 28V and 48/54V DC Input connectors provided to power module, amps and PoE respectively
  • External filtering required

Construction

  • Aluminum construction
