Voyager 2 Slim

Flexible 2-slot chassis with support for VHF/UHF and MANET radios in a backpack or transit case

Voyager 2 Slim is a two slot, rugged backplane chassis supporting two Voyager modules in a backpack or briefcase form factor.

Battery-backed power is provided by Voyager 1 and the system is also ideal for vehicle installs with addition of Voyager Module Battery Bracket (VMBB) or Voyager Module Adapter (KVMA).

Optional mounts for a HAIPE device or Cradlepoint IBR900 above each slot are also available.

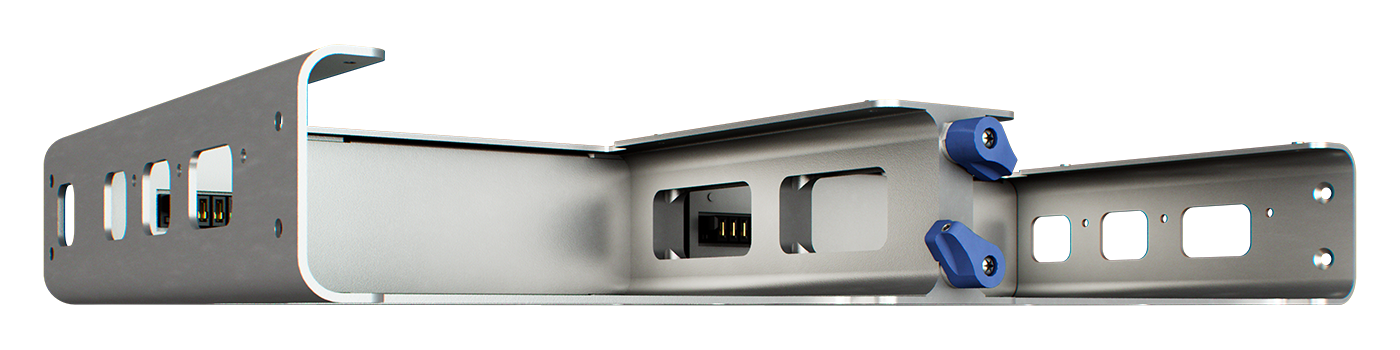

Figure 1: Voyager 2 Slim Front View – Module Slots

Figure 2: Voyager 2 Slim Rear View – Power Slots


Figure 3: Voyager 2 Slim with HAIPE Brackets and HAIPE device attached

Key Features:

Two slot Voyager chassis with modules housed side-by-side for reduced size and weight. Ideal for rucksack installation or mounting in locations where space is at a premium.
Space for one Voyager network module or two Voyager m-Series modules per slot.
Standard depth or full depth options available where the standard depth houses a Voyager module without a Voyager 1 attached and the full depth houses a Voyager module plus Voyager 1 attached.
Accepts any combination of Voyager 1, VMBB or KVMA power options in the two rear slots. Power is passed through to the Voyager modules.
Option to attach HAIPE brackets above each module slot, e.g. KG250X/SecNet, KG-250XS, KG-175 Nano.
The HAIPE bracket can also be used to attach a Cradlepoint IBR900.
Flexible mounting options with mounting holes in the sides, top and bottom of the chassis.

Specifications

Physical Specifications

Standard: 15.5” W x 7.7” D x 2.3” H (395 mm W x 246 mm D x 58 mm H)
Full Depth: 15.5” W x 9.3” D x 2.3” H (395 mm W x 287 mm D x 58 mm H)
Standard: 2.2 lb (1.0 kg)
Full Depth: 2.5 lb (1.1 kg)

Electrical Specifications

Input power for each module slot is provided by any of:

Voyager 1 (KLAS-VOY-CHAS1-R8)
Voyager Module Battery Bracket (KLAS-VOY-MBB)
Voyager Module Adapter (KLAS-VOY-KVM

Construction

Aluminum construction with milled plastic central support
