A Small, Lightweight, Attachable Battery

Voyager 1 is a rugged battery pack for use with the Voyager range of network modules.

As an alternative to a backplane chassis, the Voyager 1 battery pack can be attached to the rear of any Voyager network module. In addition, a battery-backed DC output is provided to power encryption devices including ViaSat KG-250X, ViaSat KG-250XS, TACLANE-Nano KG-175N, SecNet 54, KG-175D and Mini-Catapan.

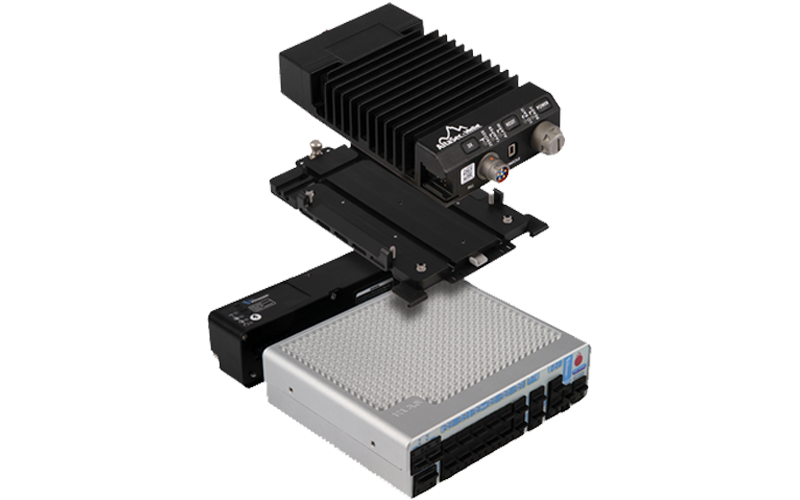

As an alternative to a backplane chassis, the Voyager 1 battery pack can be attached to the rear of any Voyager network module

Key Features:

  • Rugged battery pack compatible with all Voyager network modules including VoyagerESR, VoyagerVM and VoyagerSW14
  • 75 Wh of battery backup providing up to 3 hours of power(including PoE) for Voyager modules
  • May be stacked for extended operation
  • Battery-backed 12 V or 24 VDC output to power encryption devices including ViaSat KG-250X, ViaSat KG-250XS, TACLANE-Nano KG175N, SecNet 54, KG-175D and Mini-Catapan

Specifications

Size

  • 7.4” W x 1.65” D x 2” H
  • 188 mm x 42 mm x 52 mm

Weight

  • 1 lb / 0.48 kg

Construction

  • UL94 V0 rated plastic
  • Aluminum mounted plate
  • Stainless steel thumbscrews

Charge Voltage

  • 10-18 VDC

Output

  • 12 V and 48 V outputs to backplane connector
  • 12 V output via Fischer 5-way D103A54 to power Haipe

Operating Temperature Range

  • Charge: 0°C to 40°C
  • Discharge: -20°C to 60°C

Storage Temperature Range

  • -20°C to 50°C
