Accelerate the development of ADAS and Autonomous Vehicle systems

Enabling Hardware-In-Loop simulation for the development of autonomous vehicle algorithms requires access to real data generated in-vehicle.

Ethernet-connected video and Lidar sensors produce high volumes of data but it’s also important to have access to traditional CAN interfaces to interleave throttle, V2X and braking information.

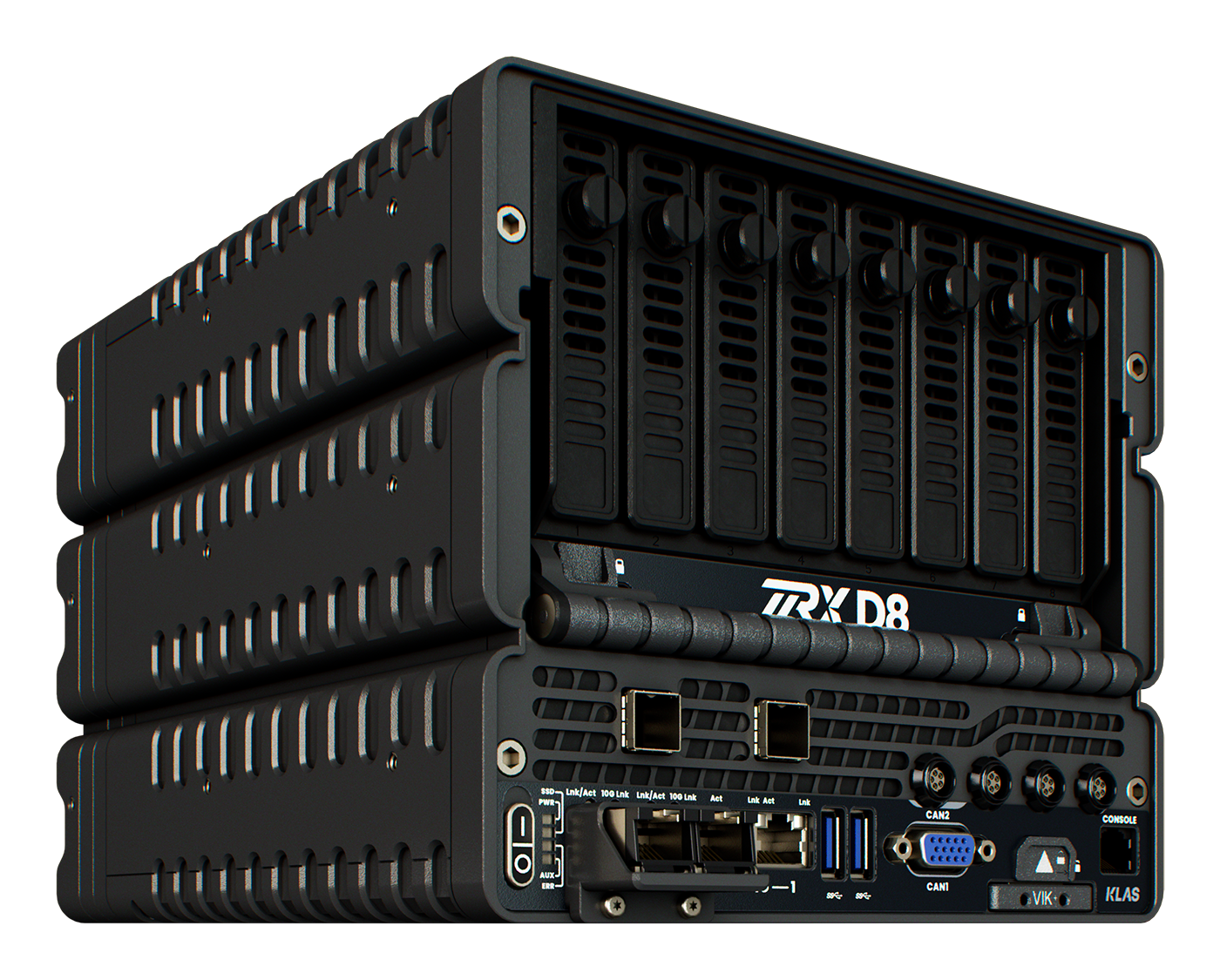

With TRX D8 you can collect data from Ethernet and CAN and store up to 240TB of encrypted data in a single easy-to-remove storage cassette.

Key Features:

  • Intel Xeon D with 8 (D-1539), 12 (D-1559) or 16 Cores (D-1577)
    • 32GB standard; upgrade option to 96GB RAM
    • 500GB CFX (VIK+) storage for KlasOS Keel
  • Intel RSP3MD088F RAID Card connected via PCIe x 8 and supporting RAID levels 0, 1, 10, 5, 50, 6, 60
  • Removable 8-drive casssette with SAS / SATA support, each with 12Gb/s or 6Gb/s respectively
  • Support for an additional SSDs via two 4 x SAS connectors (additional cassette available)
  • Supercap option for battery-backed cache
  • Self-encrypting drive support
  • Vehicle power adapter for 10-36V operation
