VoyagerEMm is an integrated Radio over IP (RoIP) system with interfaces for radio, Ethernet and handset audio

Klas VoyagerEMm

VoyagerEMm is an integrated Radio over IP (RoIP) system with interfaces for radio, Ethernet and handset audio. With ultra-low power requirements, VoyagerEMm is ideal for battery powered applications where SWaP is critical.

VoyagerEMm provides four E&M radio interfaces for connection of audio for push-to-talk (PTT) radios. Three Ethernet ports are also available along with a handset/headset/speaker connector for handsets such as the H-250.

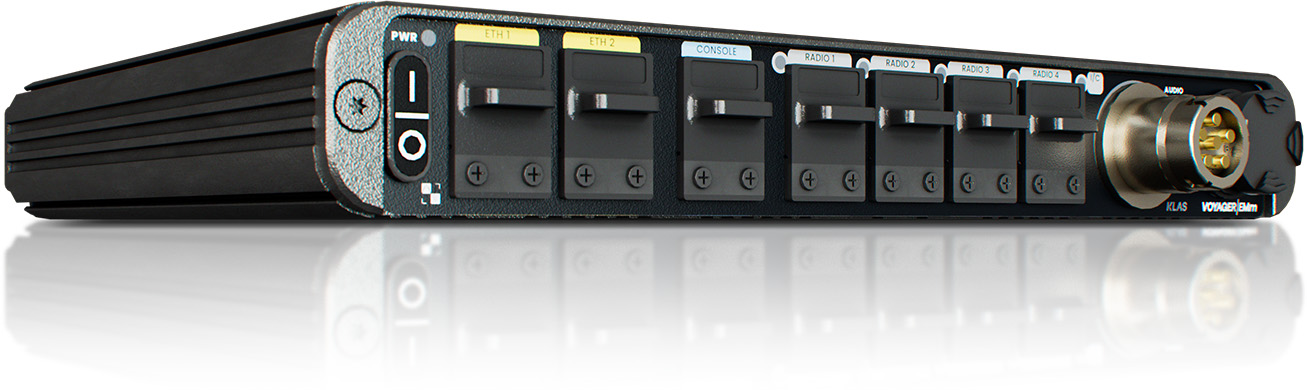

Klas Voyager EMm

Based on Cistech RoIP technology, VoyagerEMm is the ideal way to integrate radios in an IP world





Form Factor Variations

VoyagerEMm4 consists of a single m-Series module packaged with either a dummy module or another m-Series module such as VoyagerVMm

VoyagerEMm4 has the following following ports

  • Four E&M RJ-45 radio ports
  • two Ethernet RJ-45 ports
  • One Console RJ-45 Management port
  • One H-250 Handset connector







VoyagerEMm8 consists of two interconnected m-Series Radio over IP (RoIP) systems with interfaces for radio, Ethernet and handset audio and VoyagerPB.

VoyagerEMm4 has the following following ports

  • Eight E&M RJ-45 radio ports
  • Four Ethernet RJ-45 ports
  • Two Console RJ-45 Management port
  • Two H-250 Handset connectors









Key Features:

  • m-Series module measuring 7.4″ W x 5.7″ D x 1″ H
  • Four RJ-45 radio ports supporting Press to Talk (PTT) and Squelch (SQL) functions
  • Low power consumption
  • Data and power backplane to simplify cabling
  • Lightweight aluminum construction
  • Two Ethernet ports on the front panel and one on the rear panel
  • Support for a handset/headset/speaker such as the H-250
  • Toggle switch allows switching between radio 1 – 4 and adjusting the volume level
Download Brochure
View our full Voyager range
Request a Call

Specifications

Physical Specifications

  • 7.4” W x 5.7” L x 1.0” H (188 mm x 145.2 mm x 26 mm)
  • 2.2 lb / 1.0 kg

Electrical Specifications

  • 10 – 18 VDC Input for operation
  • Power consumption: 2 Watts

Construction

  • Integrated aluminum chassis with dust caps

Ports

  • 2 x Ethernet RJ-45 on front
  • 1 x Ethernet Mill-Max on rear
  • 1 x Console RJ-45 Management port
  • 4 x E&M RJ-45 radio ports
  • 1 x H-250 Handset connector

Operating Temperature

  • -25oC to 60oC

E&M

  • Frequency response selectable for 300 Hz to 3.4 KHz or Wideband 200 Hz to 20 KHz
  • Tx Audio
  • Rx Audio
  • Press to Talk (PTT)
  • Squelch (SQL)

Compliance

  • Designed to meet:
  • MIL-STD-810G
  • MIL-STD-461E
  • FCC Part 15B
