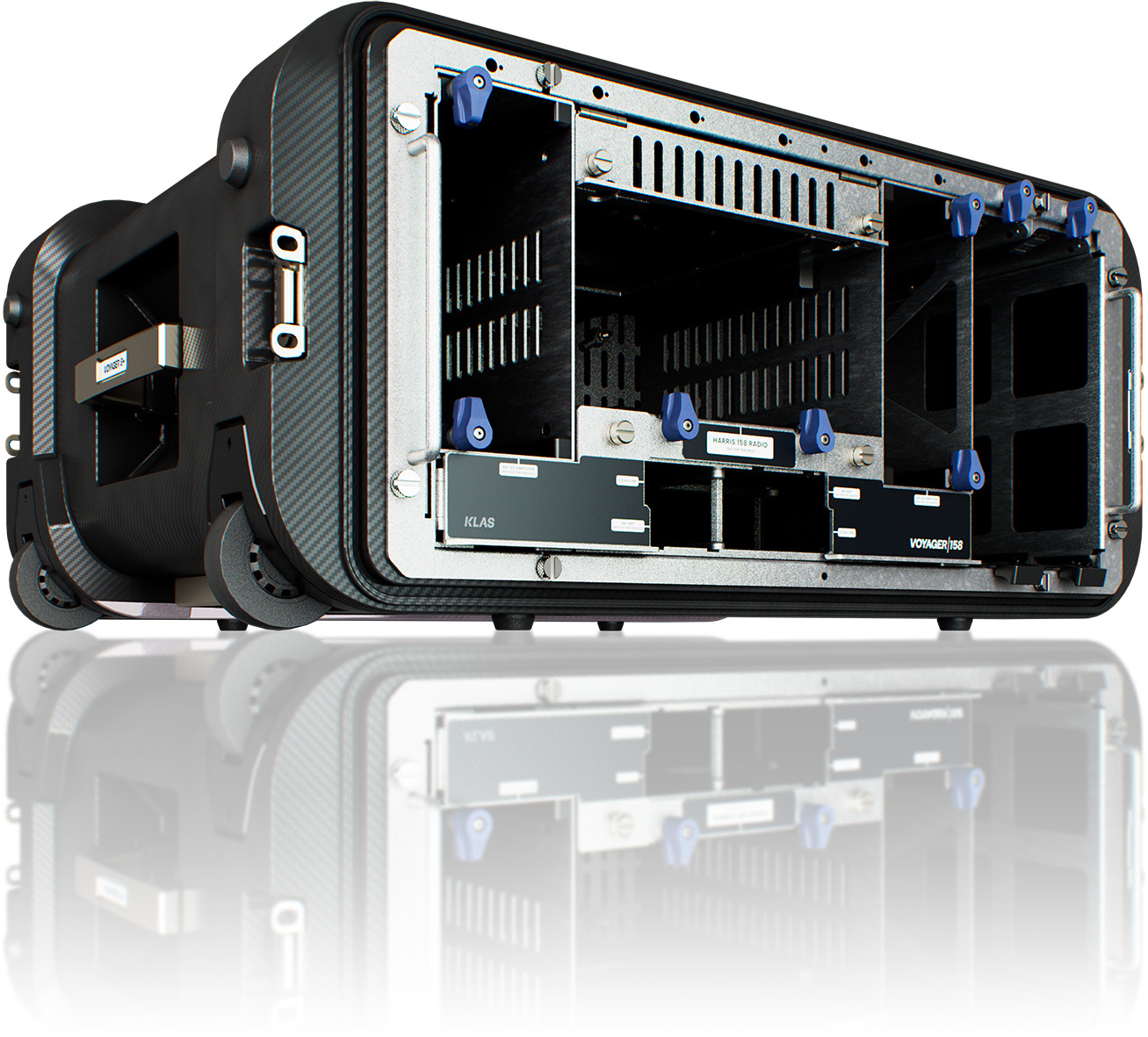

Tactical Radio Integration Kit based around Harris Falcon IV AN/PRC-158 radio
The two-channel Harris 158 radio provides superior security and mission flexibility. Voyager 158 builds on this capability with a 50W amplifier and a Bias T for each communications channel.
Not only that but there is space for two Voyager modules to add RoIP, compute or routing.
All in a Voyager 8+ package to support at-the-halt or on-the-move use cases.
Key Features:

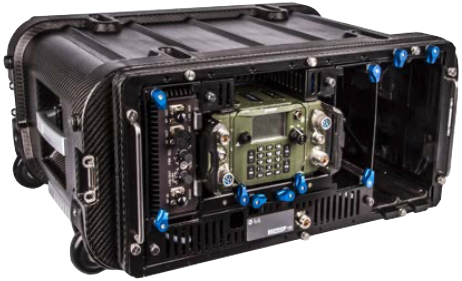

- Voyager 8+ UPS/case with sled for dual-channel Harris Falcon IV AN/PRC-158 manpack radio
- Support for 2 x Modular RF AR-50 band-switch RF booster amplifiers
- Support for 2 x Modular RF AR-RBt Bias-T modules
- Space for 2 x Voyager modules
Specifications
Physical
- 18.8” x 22.5” x 10.1” (478 x 571 x 257mm)
- Case and chassis weight: 46.7 lb / 21.2 kg (excluding radio, amplifiers, bias-T and batteries)
- Chassis weight: 32 lb / 14.5 kg (excluding case, radio, amplifiers, bias-T and batteries)
Electrical
- 12-36 VDC input up to 600 W with MIL-STD 1275D filter
- 90-264 VAC input up to 600 W, 50-400 Hz
- Conditioned power provided to Harris 158 radio, AR-50 amplifiers, Bias-T and Voyager modules
- 2 x AC outputs at rear when AC input is present
- Uninterrupted failover between AC, DC and battery
- Space for 2 x BB-2590 batteries (available separately)
- Provides 414 Wh energy of backup
Construction
- Aerospace-grade, carbon fiber monocoque built from single mold structure for maximum strength
- O-ring seal around front and rear lids
- Grab handles on top and bottom of case
- Retractable extension handle
- Lightweight aluminum chassis with integrated PSU
Rackmountable Chassis
- Voyager 158 chassis may be removed from case for rackmount installations
- 5U 19-inch rack (additional chassis shelf required – sold separately)
Compliance
Designed to:
- MIL-STD-810G
- CE / FCC
- IP67- rated case
