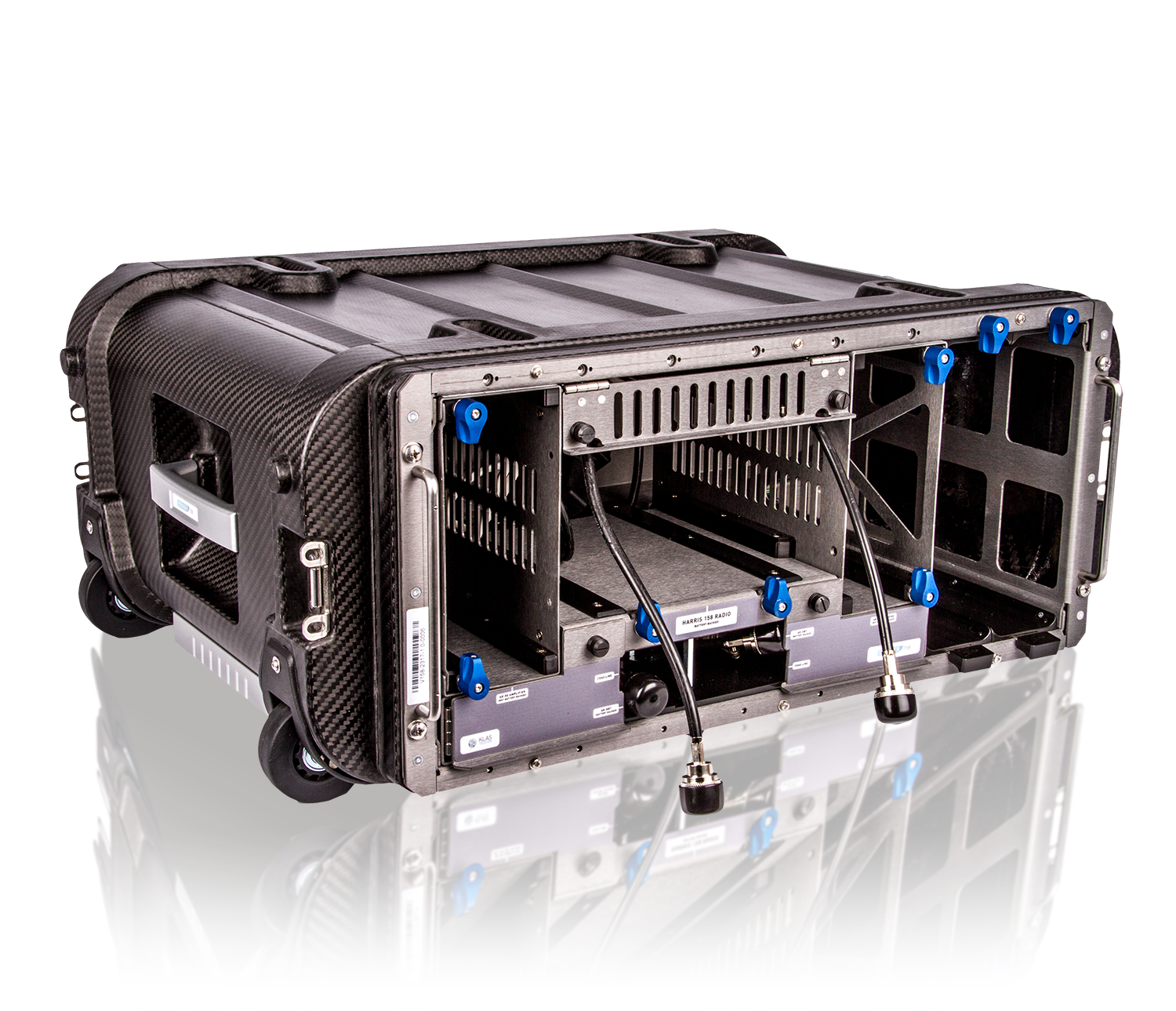

Tactical Radio Integration Kit based around Harris Falcon IV AN/PRC-158 radio

The two-channel Harris 158 radio provides superior security and mission flexibility. Voyager 158 builds on this capability with a 50W amplifier and a Bias T for each communications channel.

Not only that but there is space for two Voyager modules to add RoIP, compute or routing.

All in a Voyager 8+ package to support at-the-halt or on-the-move use cases.

Key Features:

  • Voyager 8+ UPS/case with sled for dual-channel Harris Falcon IV AN/PRC-158 manpack radio
  • Support for 2 x Modular RF AR-50 band-switch RF booster amplifiers
  • Support for 2 x Modular RF AR-RBt Bias-T modules
  • Space for 2 x Voyager modules

Specifications

Physical

  • 18.8” x 22.5” x 10.1”  (478 x 571 x 257mm)
  • Case and chassis weight: 46.7 lb / 21.2 kg (excluding radio, amplifiers, bias-T and batteries)
  • Chassis weight: 32 lb / 14.5 kg (excluding case, radio, amplifiers, bias-T and batteries)

Electrical

  • 12-36 VDC input up to 600 W with MIL-STD 1275D filter
  • 90-264 VAC input up to 600 W, 50-400 Hz
  • Conditioned power provided to Harris 158 radio, AR-50 amplifiers, Bias-T and Voyager modules
  • 2 x AC outputs at rear when AC input is present
  • Uninterrupted failover between AC, DC and battery
  • Space for 2 x BB-2590 batteries (available separately)
  • Provides 414 Wh energy of backup

Construction

  • Aerospace-grade, carbon fiber monocoque built from single mold structure for maximum strength
  • O-ring seal around front and rear lids
  • Grab handles on top and bottom of case
  • Retractable extension handle
  • Lightweight aluminum chassis with integrated PSU

Rackmountable Chassis

  • Voyager 158 chassis may be removed from case for rackmount installations
  • 5U 19-inch rack (additional chassis shelf required – sold separately)

Compliance

Designed to:

  • MIL-STD-810G
  • CE / FCC
  • IP67- rated case
