14-port switch with PoE

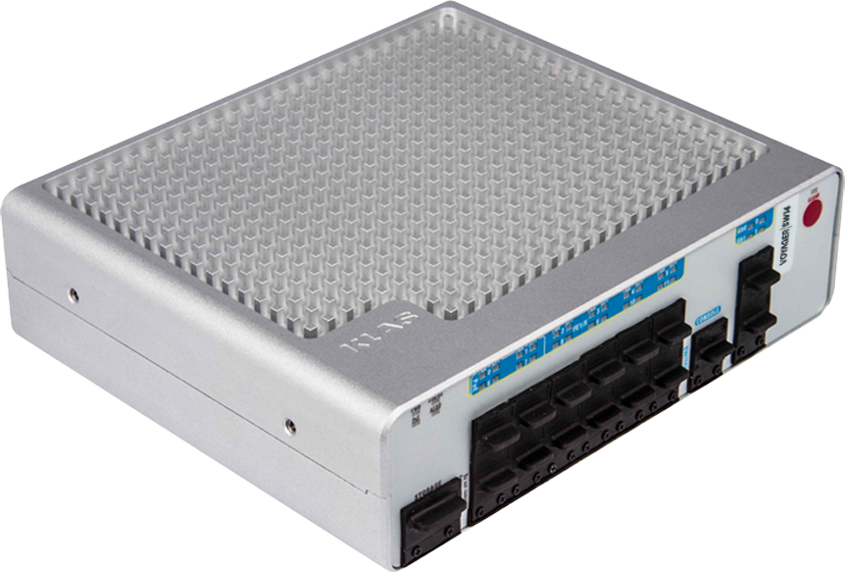

VoyagerSW14 is a managed Ethernet switch with 12 Fast Ethernet ports (4 PoE enabled), 2 GigE ports and a removable storage option to hold configuration data. It is configurable using a Cisco IoS-style CLI. VoyagerSW14 integrates seamlessly with the Cisco 5915 ESR in VoyagerESR and supports critical Cisco VoIP switching features such as VLAN trunking and CDP.

VoyagerSW14 integrates seamlessly with the Cisco 5915 ESR in VoyagerESR and supports critical Cisco VoIP switching features such as VLAN trunking and CDP

Key Features:

  • 14-port Ethernet switch in a rugged milled aluminum enclosure.
  • Fanless design with dustcaps for increased ingress protection and improved reliability
  • Managed switch support including VLAN trunking, CDP, STP, SNMP
  • Removable storage to support eToken-like reconfiguration

Specifications

Physical Specifications

  • 7.4” W x 6.3” L x 2” H (188 x 160 x 52mm)
  • 3 Ibs / 1.3kg

Electrical Specifications

  • 10-18 VDC Input for operation
  • 48 VDC input for PoE must be provided by the Voyager chassis used, where:

■ Voyager 1: provides 10 W of PoE power (48 VDC), sufficient to power one Class 2 PoE phone at 6.25 W each

■ Voyager 2: provides 15 W of PoE power (48 VDC), sufficient to power two Class 2 PoE phones at 6.25 W each

■ Voyager 8: provides 100 W of PoE power (48 VDC), sufficient to power sixteen Class 2 PoE phones at 6.25 W each

  • Maximum 7W power consumption without PoE; each PoE port requires additional 8-15W depending on powered device

Construction

  • Aluminum chassis with integrated cooling for fanless operation

Operating Temperature range

  • -25 to 60 °C with conduction cooling
  • -25 to 70 °C with forced air cooling

Storage Temperature range

  • -10 to 85 °C

Ruggedization

  • MIL-STD 810G
  • IEC 60529
  • Sealed unit with dust caps for improved ingress protection

EMC

  • MIL-STD-461F

Ports

  • 12-port 10/100 BaseT switch
  • 2x 10/100/1000 BaseT Ethernet uplink ports
  • 1x RJ-45 serial console
  • 1x Voyager Ignition Key (VIK) storage interface

Switch features

  • Auto-sensing 10/100 BaseT
  • Cisco Discovery Protocol VLAN support
  • IEEE 802.1Q port VLAN
  • Multiple Spanning Tree Protocol (IEEE 802.1Q)
  • IEEE 802.1P CoS/QoS
  • IEEE 802.1D Spanning Tree Protocol
  • Voice & Data VLAN
  • IEEE 802.1x MAC authentication
  • Diffserv QoS

Removable storage

  • Voyager Ignition Key (VIK) support
  • eToken-like functionality which supports configuration from VIK
  • Easy reconfiguration of device for different enclaves by replacing VI

Cisco Discovery Protocol

Cisco Discovery Protocol provides easy integration with a Cisco VoIP network with support for VLAN and QoS features. In addition troubleshooting is made easy using CDP commands on VoyagerSW14.
