10-port Cisco switch for rail

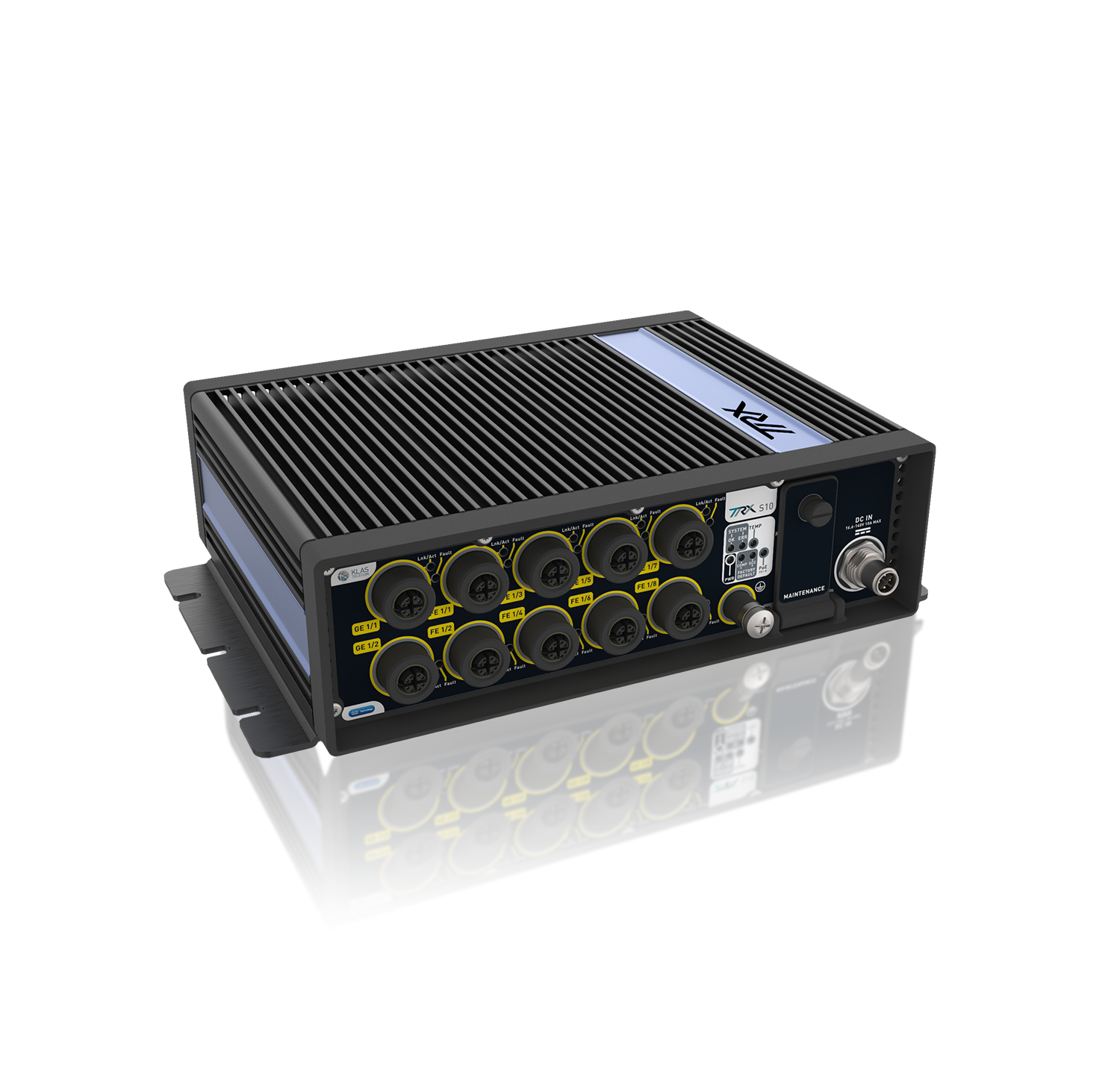

The TRX S10 is a rail certified, 10-port managed switch based on Cisco IOS technology.
It provides Enterprise switching for maximum performance in high-throughput applications such as Passenger Wi-Fi and infotainment.
Key Features:
- Enterprise grade Cisco IOS Layer 2/3 switch
- Supports Gigabit Copper/Fiber train backbone
- Fail-to-wire on Gigabit ports to maintain service to downstream cars during outage
- Extensive security features including 802.1x authentication, Port Security, ACLs
- PoE compatible with IP cameras and Wi-Fi access points
- Extensive Quality of Service features for video streaming
Specifications
Physical Specifications
- 9.8” W x 7.7” L x 3” H (250 mm x 195 mm x 76 mm)
- 6.6 lb / 2.98 kg
Ports
- 2 Gigabit Ethernet ports available as X-code M12 Copper or QODC fiber. Fail-to-wire enabled using mechanical bypass relay
- 8 Fast Ethernet ports available as X-code M12 Copper on front panel. All ports are PoE+ enabled and powered from 24-110V supply
- RJ-45 console port behind cover plate
- Extruded aluminium enclosure
Standards Compliance
- EN 50155 Certified. Incorporates EN 50121-3-2, EN 61373-2010
- EN 50155 temperature Class TX (-40 – 70C / 10 min @ 85C)
- EN 50155 power Class S2 (10ms holdup)
- EN 45545-2 Railway applications – Fire protection on railway vehicles
- FCC/CE certified
- RoHS compliant
- IP54 ingress protection
Electrical Specifications
- 24 – 110 VDC
- Power consumption
- 10 W without PoE
- 130 W when front panel PoE ports are in use
Cisco IOS features
- Mac port port security
- 802.1x authentication
- 802.1q VLANs
- Multicast support with IGMP snooping
- IPv4 and IPv6
- DHCP server
