Use your vehicle as a mobile command post with the Voyager 4

Voyager 4 is a lightweight chassis with space for up to four Voyager modules with or without a Voyager 1 battery pack attached.

The Voyager 4 has multiple point points to enable vehicle installations and can also be DIN rail mounted and powered.

The installed modules are powered via the chassis backplane which is supplied directly by the input power supply with a separate PoE power input also provided.

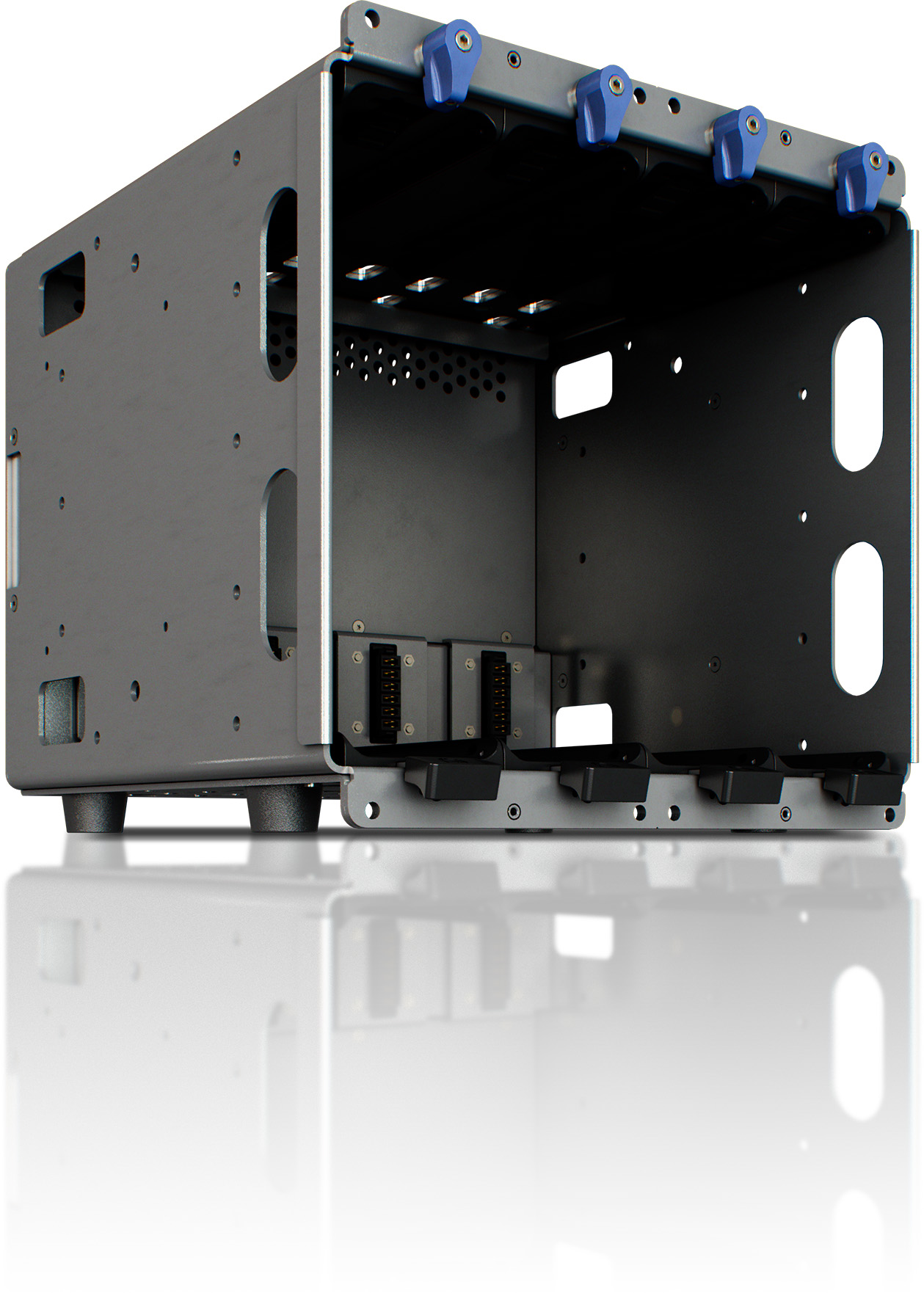

Figure 1: Voyager 4 Front View
Figure 2: Voyager 4 Power Input Connectors

Key Features:

  • Support for up to four Voyager modules including Voyager 1 battery packs if attached.
  • Multiple mounting options with mounting holes on the front, rear and sides of the chassis.
  • Lightweight aluminum construction.
  • DC input connector for connecting a 12 VDC power source. Ensure that the input power matches the power rating of the Voyager modules installed in the chassis.
  • PoE power input connector for connecting a separate 48 VDC PoE power source.
